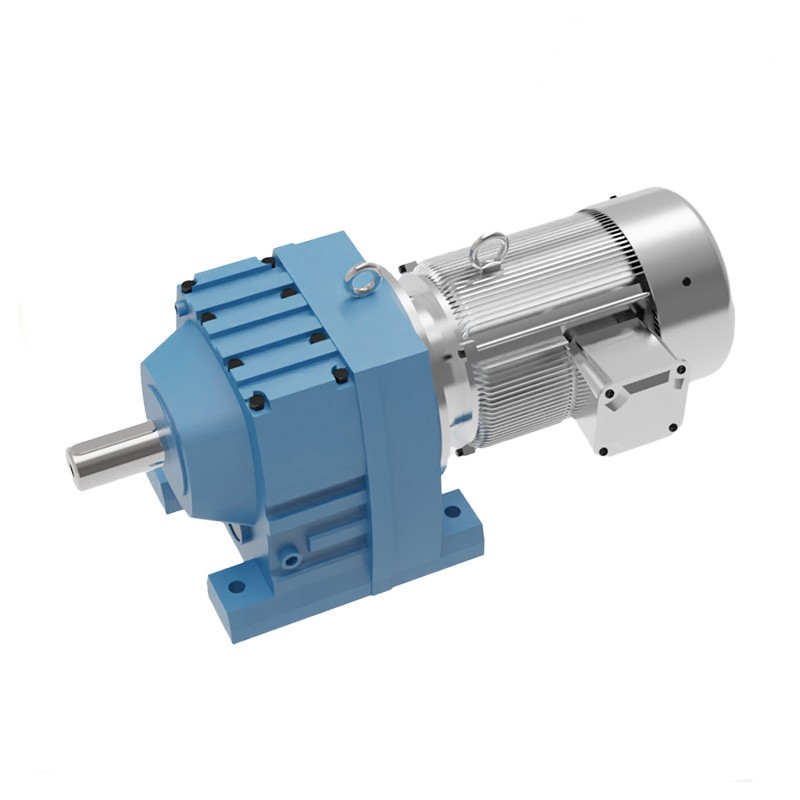

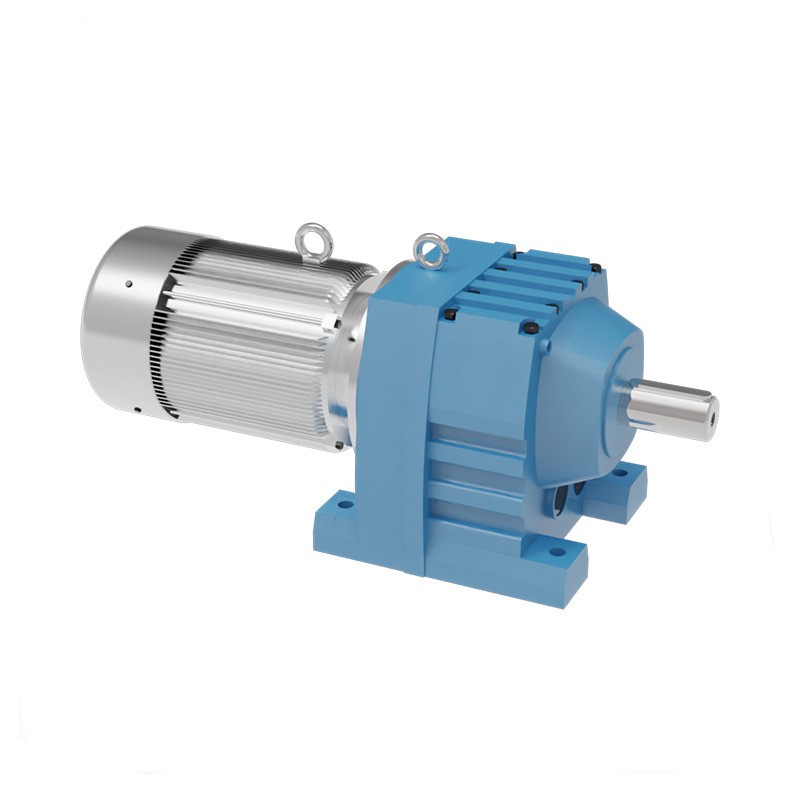

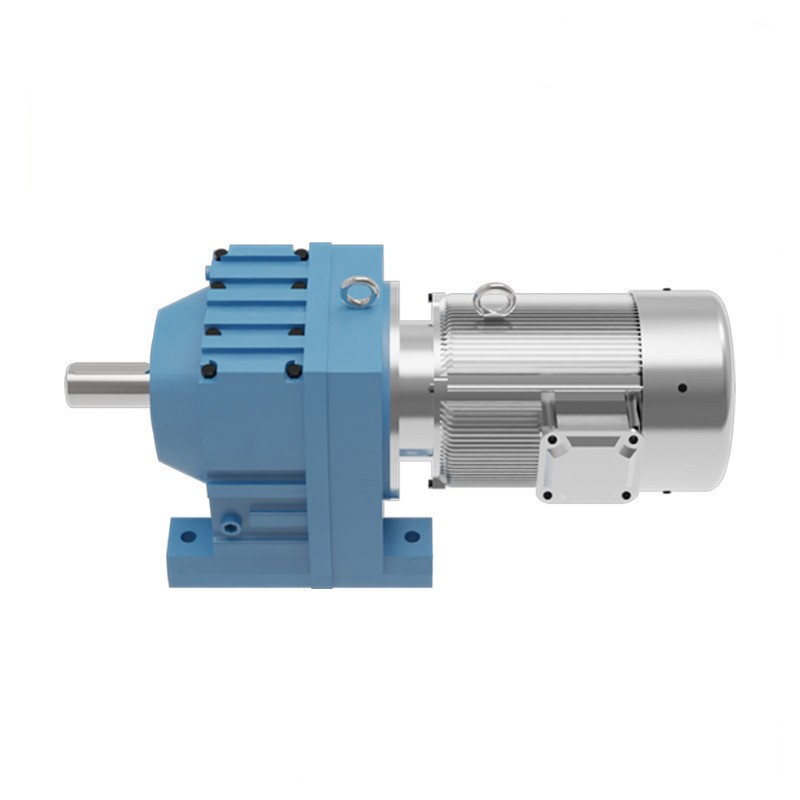

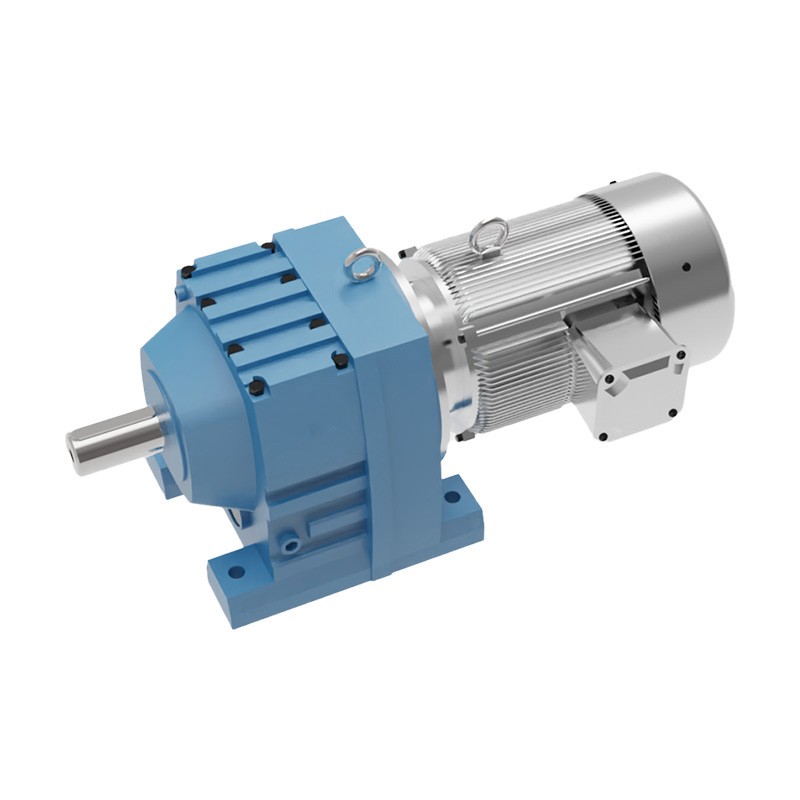

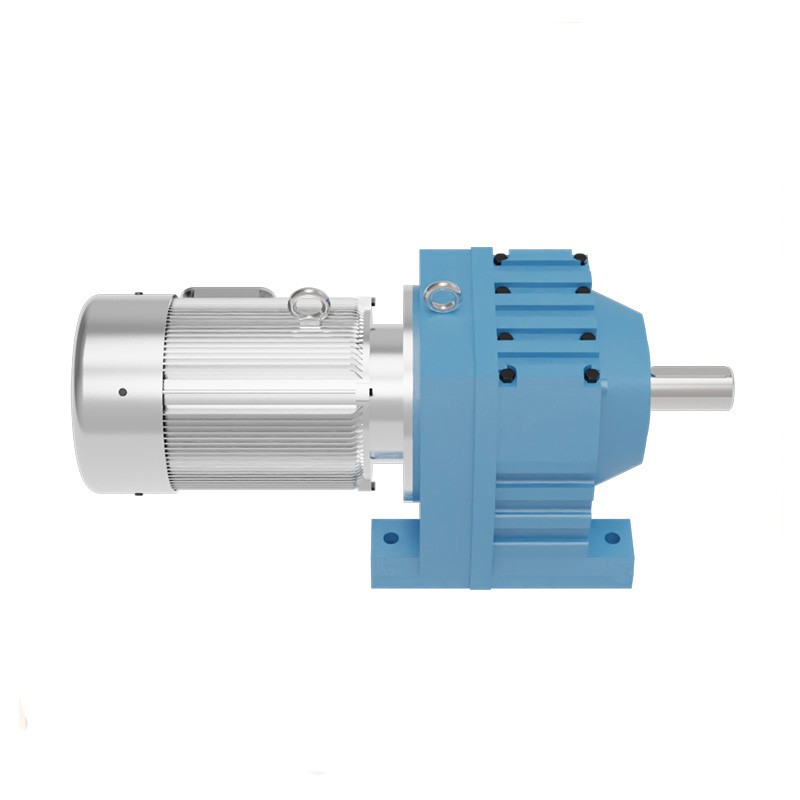

R Series Modular Geared Motor
Performance characteristics

R series coaxial-helical gear motors have the characteristics of small size and large transmission torque.
1. Designed and manufactured on the basis of the modular combination system, there are extremely many motor combinations, installation types and structural schemes, and the transmission ratio is finely graded to meet different operating conditions and realize mechatronics.
2. The four series of reducers R, P, K, and S adopt the modular design principle of unit structure, which greatly reduces the types of parts and inventory, and also greatly shortens the delivery cycle.

3. High transmission efficiency, low energy consumption and superior performance.

4. High-rigidity cast iron box with ribs, gears are made of high-quality alloy steel, the surface is carburized and fire-hardened, finely ground, stable transmission, low noise, large bearing capacity, low temperature rise, and long life.

5. This series of reducers does not contain oil before leaving the factory. It is recommended to add N220 medium extreme pressure industrial gear oil in GB3141 before use.

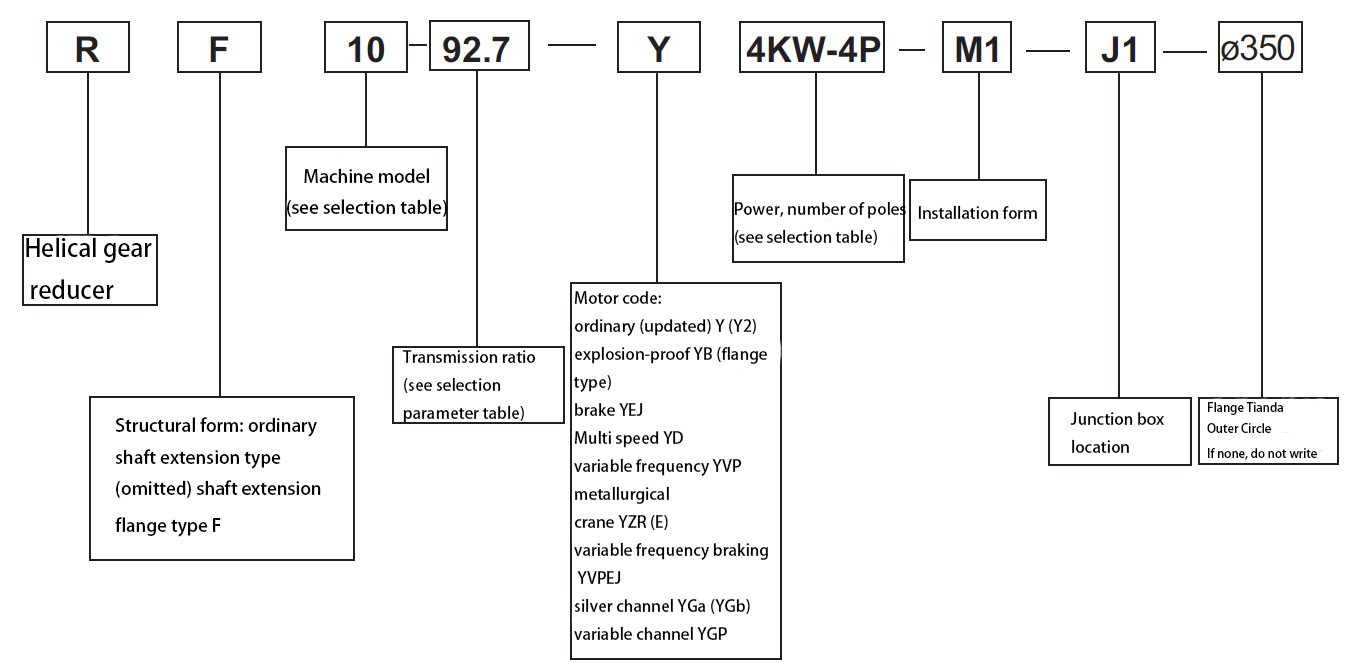

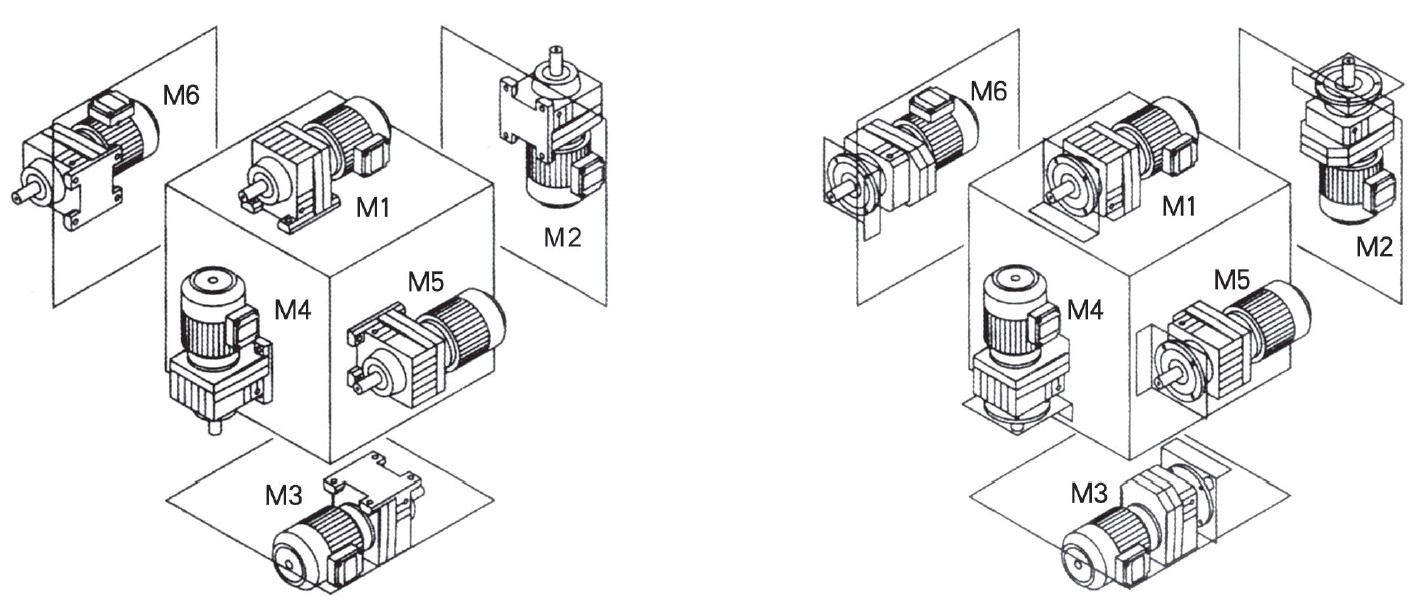

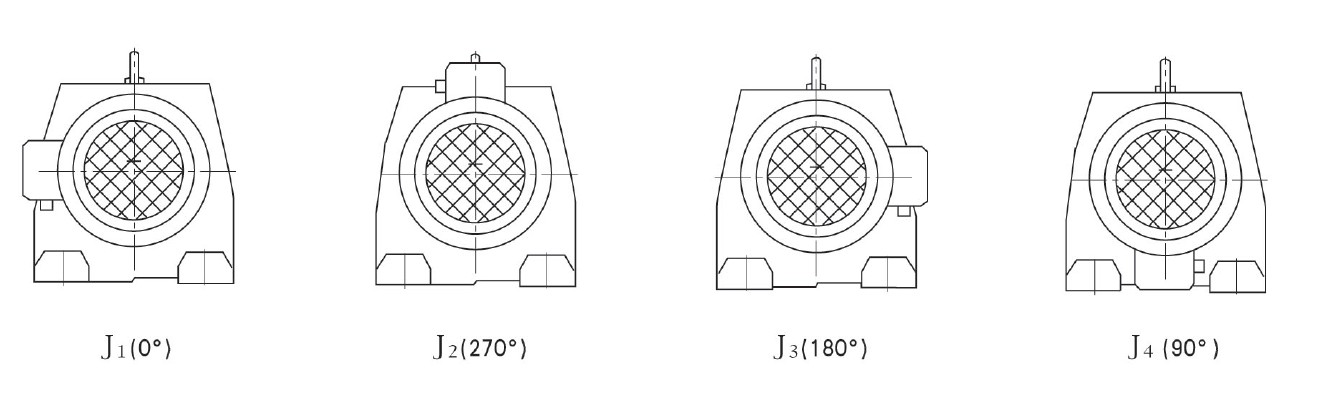

Detailed selection parameters and size parameters
